pediatric neonatal laryngoscope-0

Laryngoscopes

Home >  Medicals >  Diagnostic Products >  Diagnostic & Monitoring Equipment >  Laryngoscopes

Pediatric Neonatal Laryngoscope
Pediatric Neonatal Laryngoscope
Pediatric Neonatal Laryngoscope
Pediatric Neonatal Laryngoscope
Pediatric Neonatal Laryngoscope
Pediatric Neonatal Laryngoscope

Pediatric Neonatal Laryngoscope

Get a Quote Contact Us
  • Description
  • Product Information
  • Additional Information

+86-02586907211
[email protected]
Inquiry
FEATURES
Applied to the departments such as:
· ICU
· NICU
· Respiration
· Anesthesia
· Emergency etc
· When working in tight spaces, the Mole Display’s screen can be angled up to 70 degrees, allowing for optimal positioning of the laryngoscope blade while maintaining your established technique. The blades come in single-use packaging and are pre-sterilized to eliminate the risk of cross-contamination.
· Specialized Design for Neonates and Children: The Pediatric Neonatal Laryngoscope is meticulously crafted to cater to the unique anatomical needs of infants and small children. Its compact, lightweight structure and available varying blade sizes permit healthcare providers to perform delicate procedures on young patients with greater precision and less invasiveness, leading to a more comfortable experience for the patient.
· Enhanced Visualization and Safety Features: Equipped with superior lighting and optical capabilities, the laryngoscope offers a clear, unobstructed view of the pediatric airway, making intubations quicker and reducing the likelihood of mucosal damage. In addition, single-use, sterilized blades help in preventing the risk of cross infection, maintaining high standards of hygiene and patient safety.
· Ergonomic and Durable: The ergonomic handle design ensures a stable grip, allowing for adept maneuvering and control, which is critical in neonatal and pediatric airway management. Constructed with durable materials that withstand repeated sterilization and use, the laryngoscope is not only reliable but also cost-effective over time, as it stands up to the rigorous demands of frequent clinical use
Plug & Go

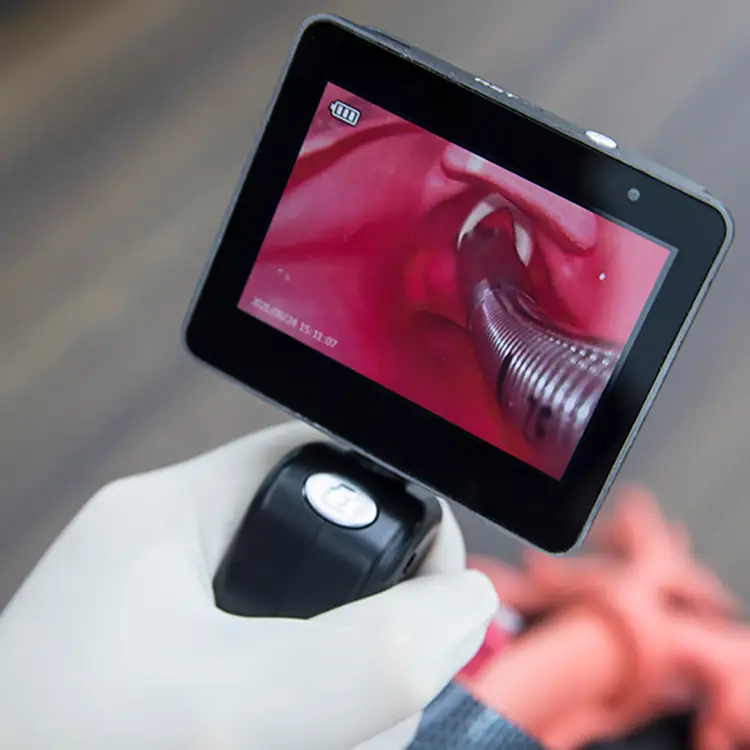

· Mole Video Laryngoscope has an intuitive interface. Wake the display with one touch of a button. The responsive, text-free display is ready to go.
· More Available Space: At 12mm height, the Mole Video Laryngoscope blade, improves visualization of the airway, increases maneuverability and working space reducing the risk of dental trauma.
Ultimate Confidence & Control
· The Mole single-use handle provides significant grip and comfort, with reduced height to facilitate difficult intubation particularly for situations with limited neck movement and obesity.
· Optimal View: Achieve the optimal screen viewing angle for you and the team, improving efficiency and decision making.
· Single-use safety: The handle and blade of Mole Video Laryngoscope is a single-use device, reducing the risk of cross-infection, reprocessing costs, time and storage.

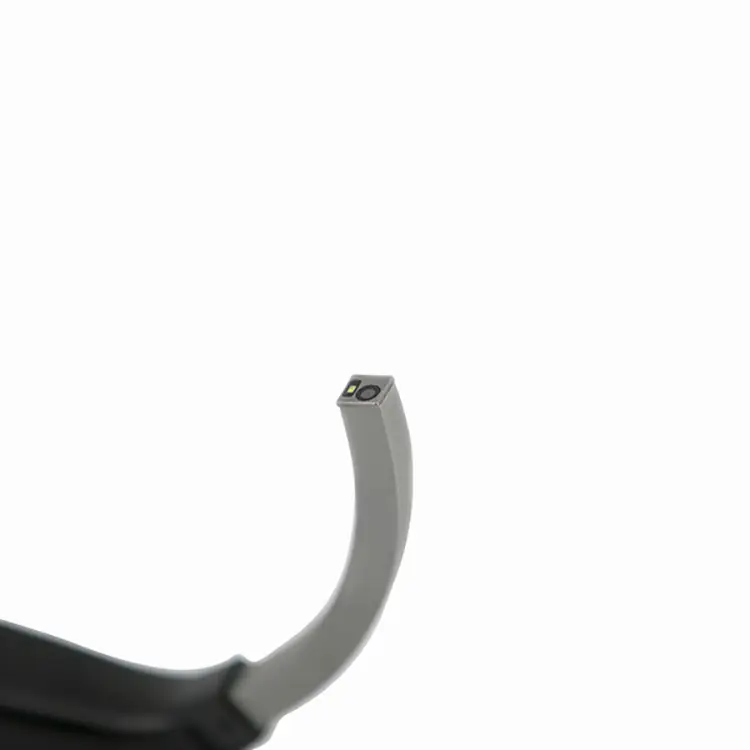

Disposable Blade
· Specially engineered disposable blade provides the confidence needed for direct and video laryngoscopy.
· Anti-Fog Design: The internally mounted Anti-Fog design reduces the need for warm up time and allows users to intubate quickly with a clear view.

Items

Technical Name

Technical Indicators

Display/Handle

Display

3″/5”(OLED)

Camera Resolution Ratio

960*480(RGB)

Illuminace(LUX)

≥800

light source

Natural white(LED)

Weight of monitor and handle

200g

Rotating angles of the monitor in front and rear

30 º~150 º

Rotating angles of the monitor in right and left

0 º~270 º

Blade

Angle of vision

≥73º

Field of depth

20～100mm

Lens

2Mpixels

double anti-fog, no preheating

IP rating

IPX7

Blade size

2 models

Battery

Continous working time

>270minutes

Power supply

Rechargeable 18650 3.7V lithium battery

Battery life cycle

≥500 times

Charging time

<4(hrs)

Charger input

110~220V AC 50Hz

Charger output

DC 5V 1A, 2600mAh

Data

Media

Class 6 Micro SD flash card

Strorage card

8GB, compatible with 64GB

File format

JPEG, AVI

Interface

1 mini USB, 1 SD card slot

Shelflife

5years

Warranty Period

1year

Certificate approval

CE, FDA, NMPA, ISO13485
